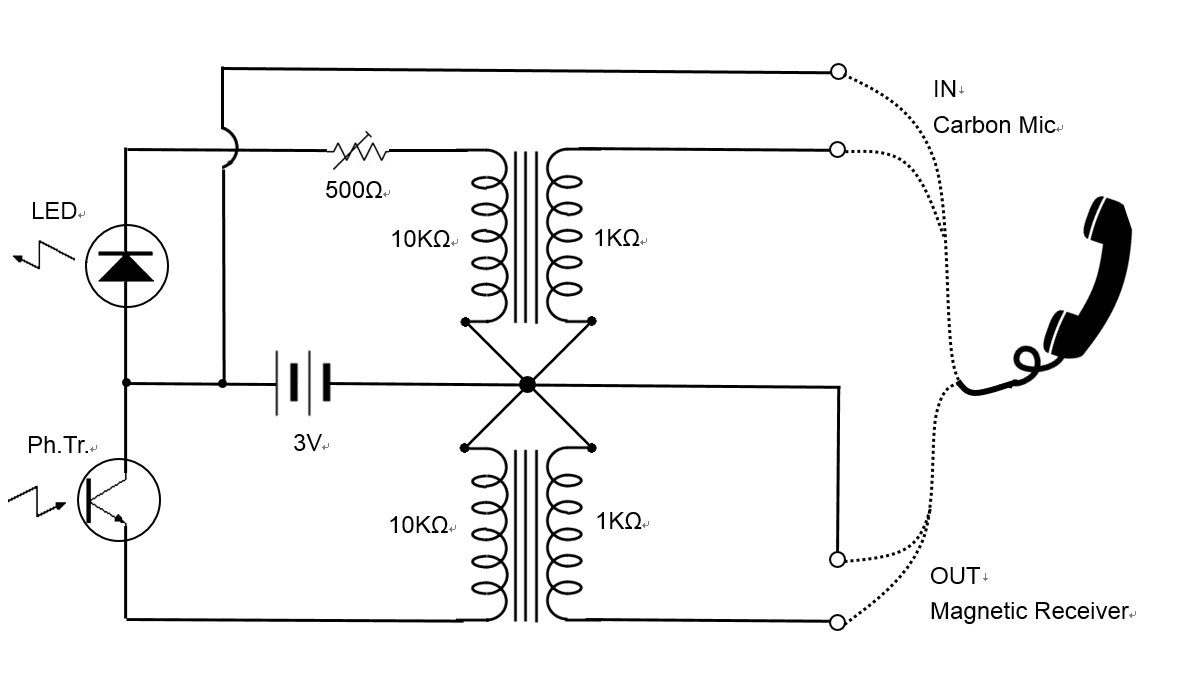

Circuit diagram for the simplest opt.transciever

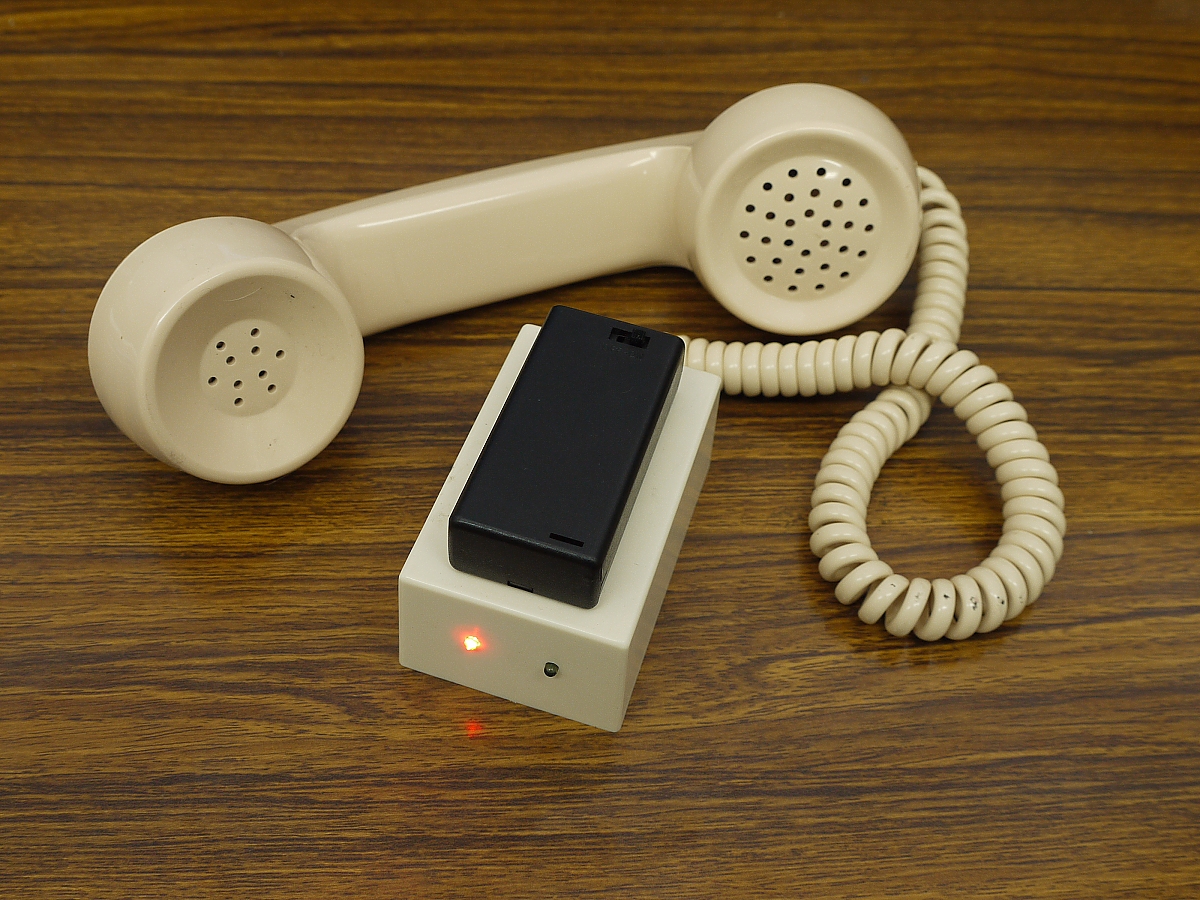

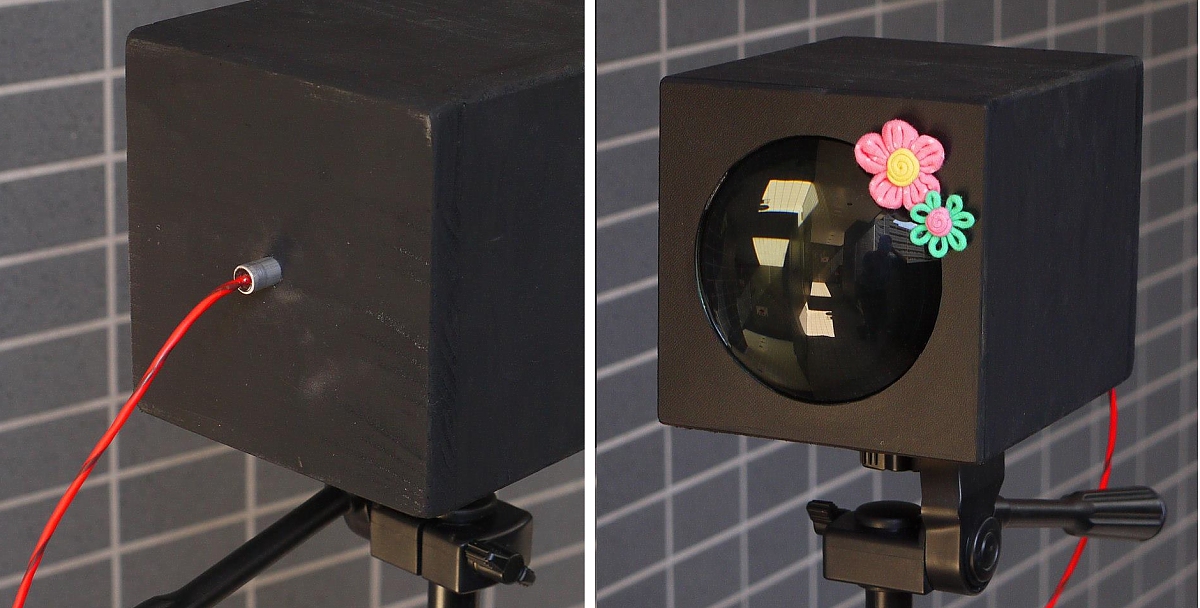

Outside appearance

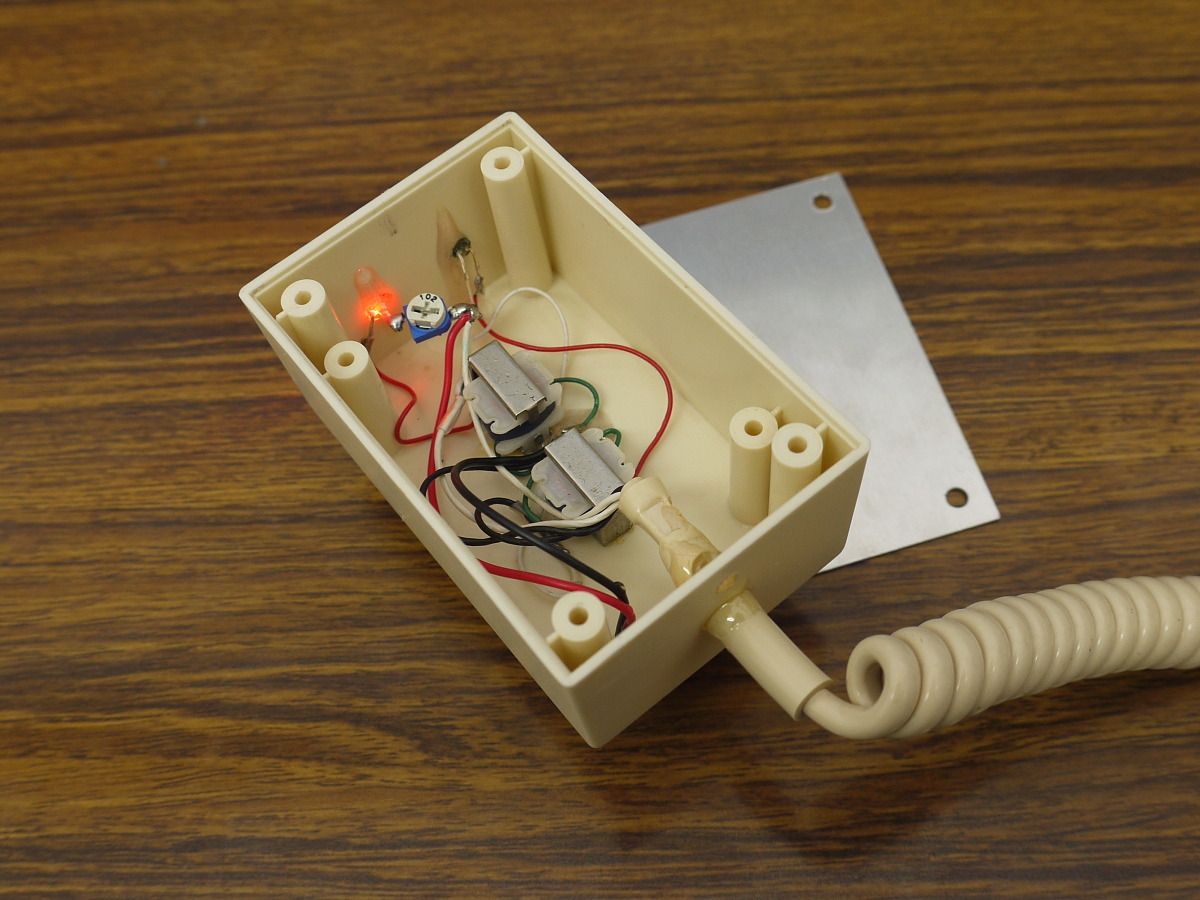

Box inside. only five parts!



Circuit diagram for the simplest emitting module



To make the unit as small as possible!

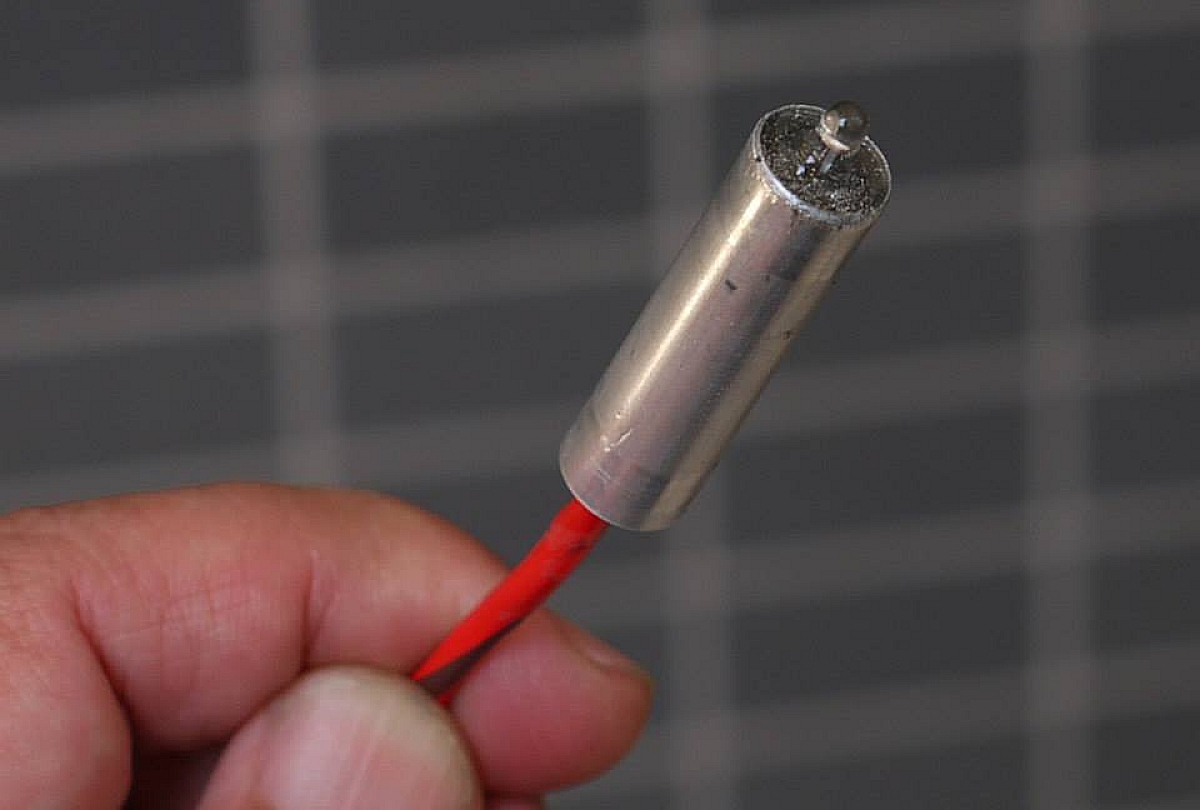

Resin-molded in short aluminium pipe



Insert the pipe to the lens box "Hana-chan". 1km communication is not difficult with this combination.

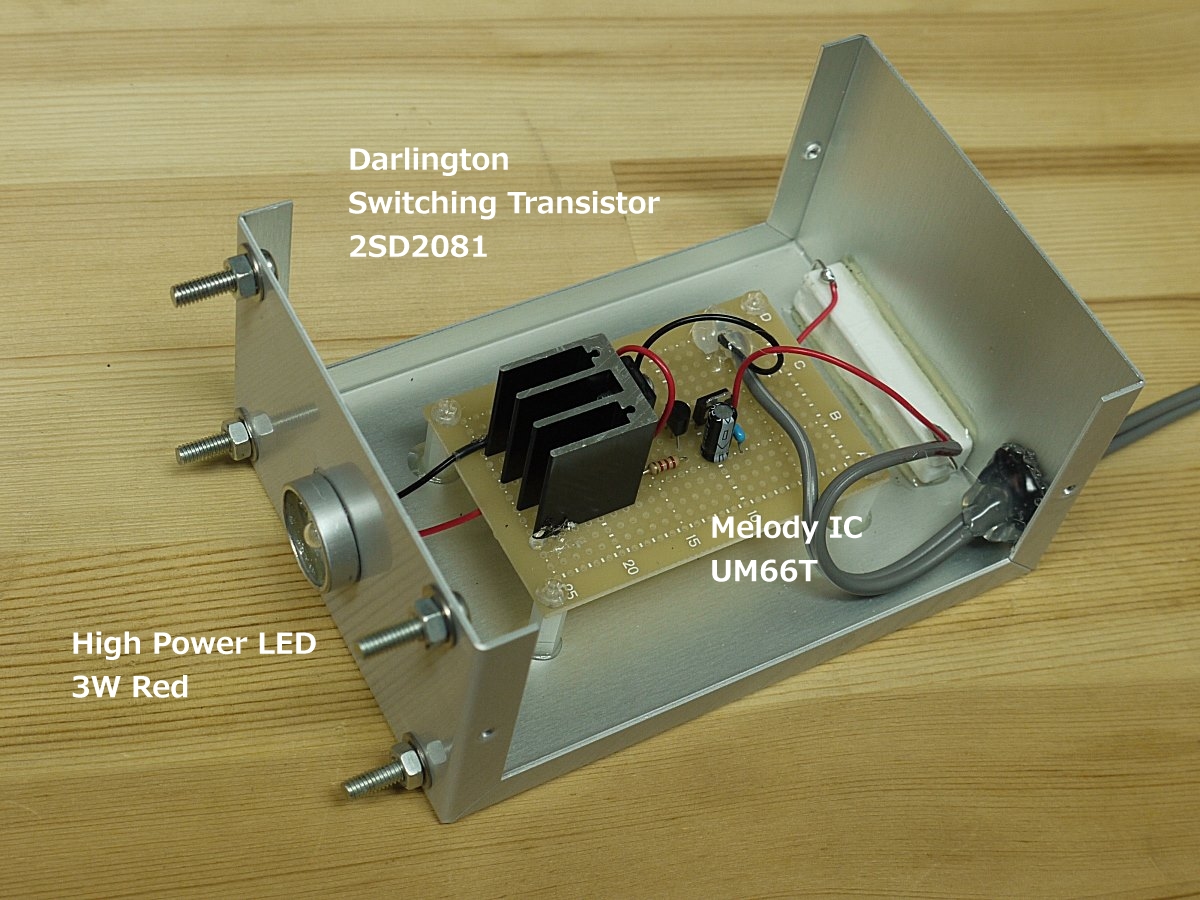

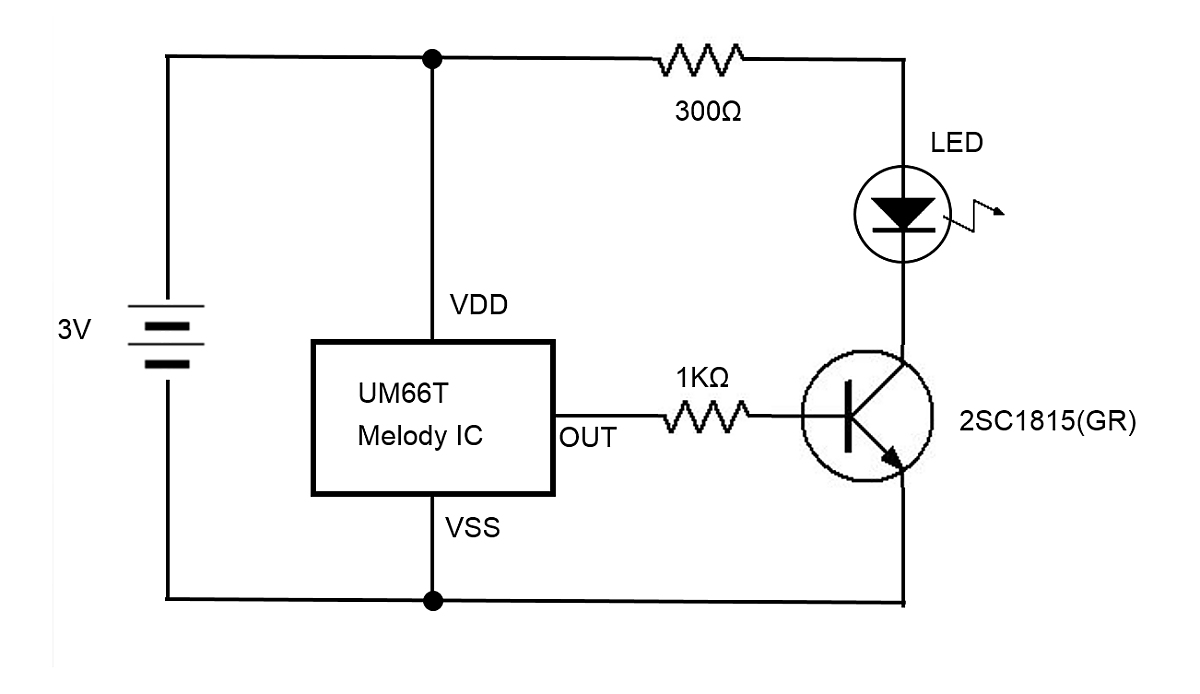

Extended version of simple transmission unit using melody chip

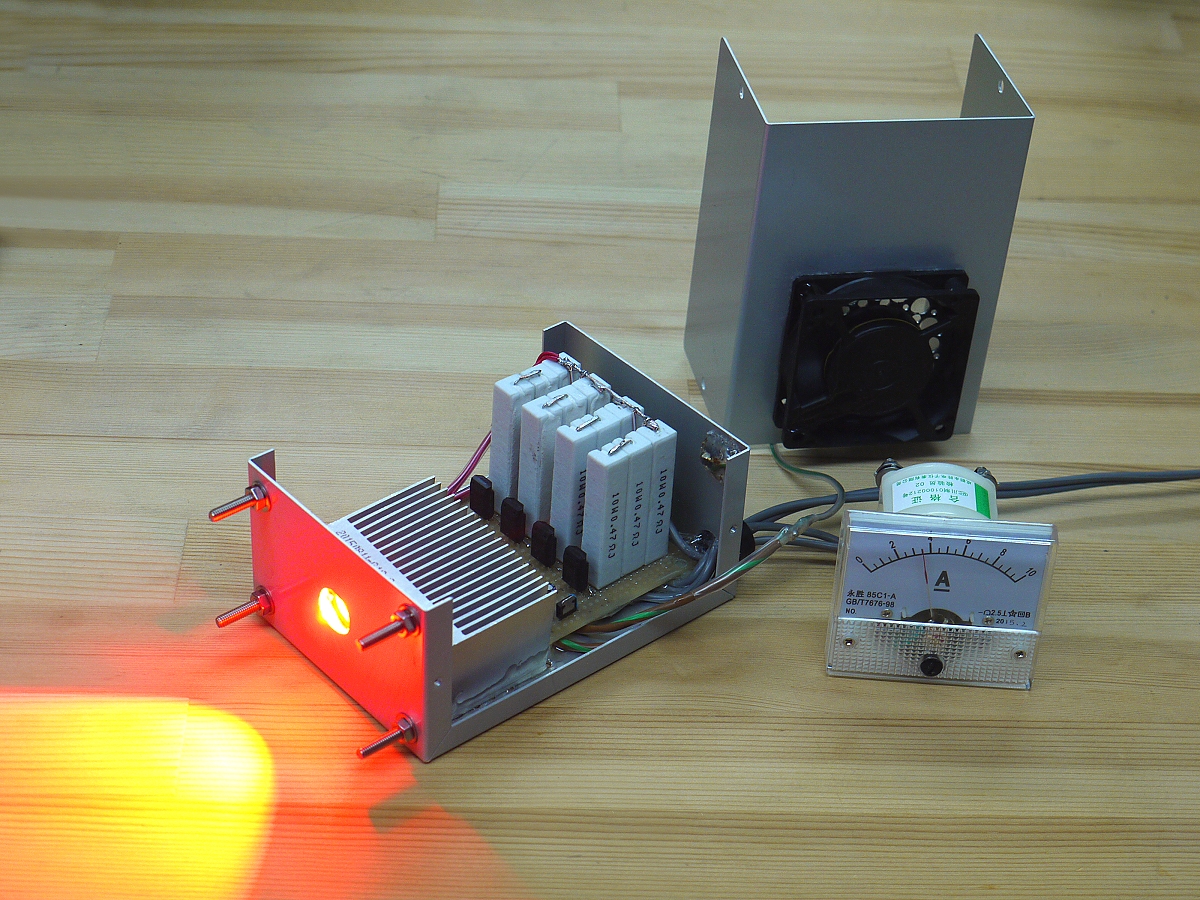

Current 800mA when pulse-on

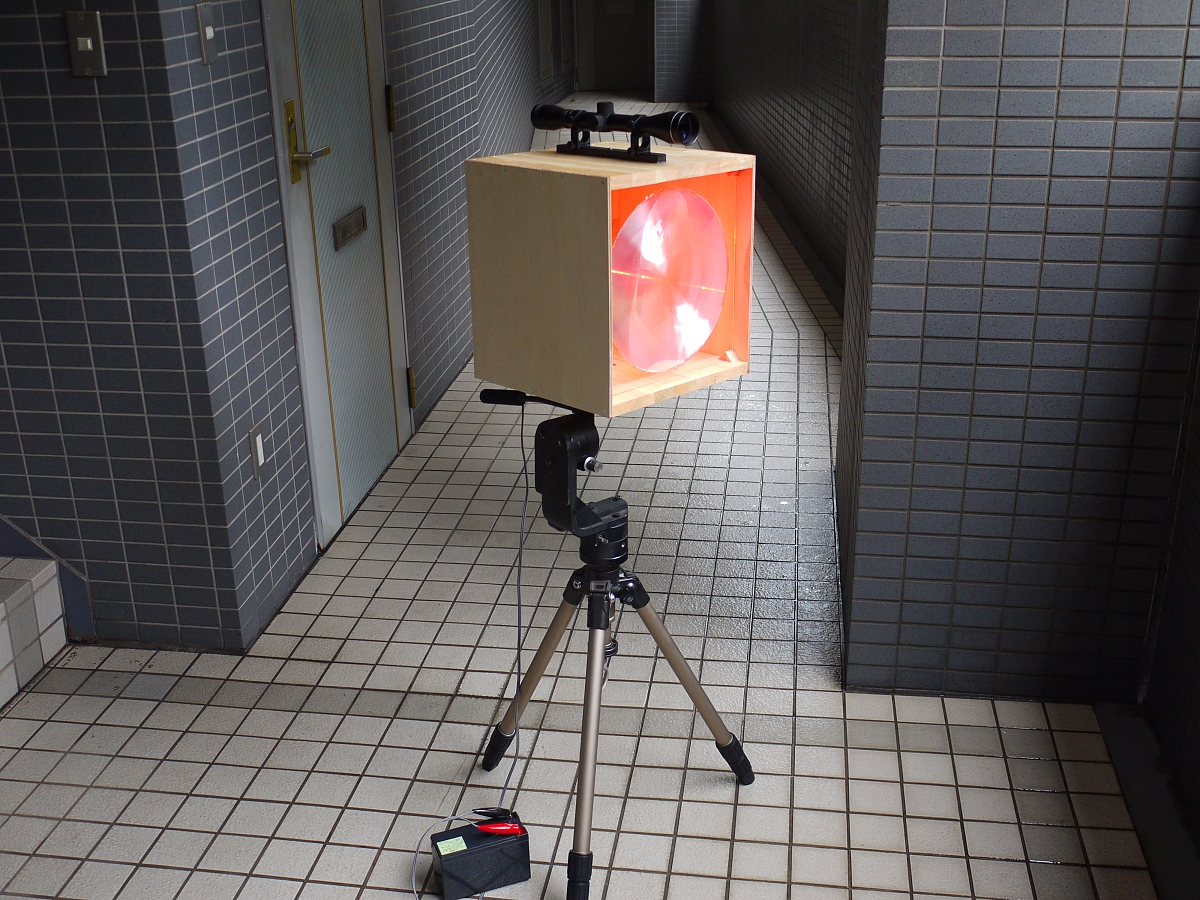

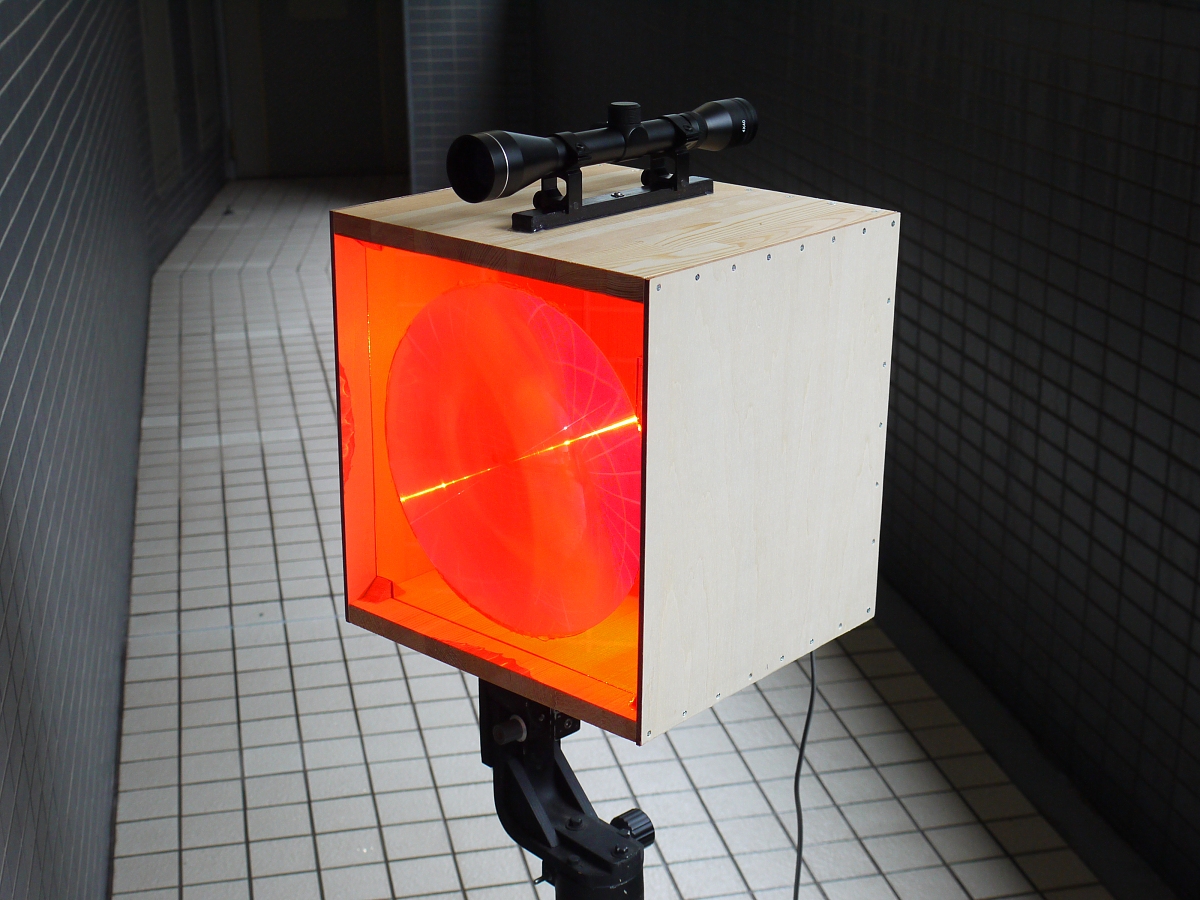

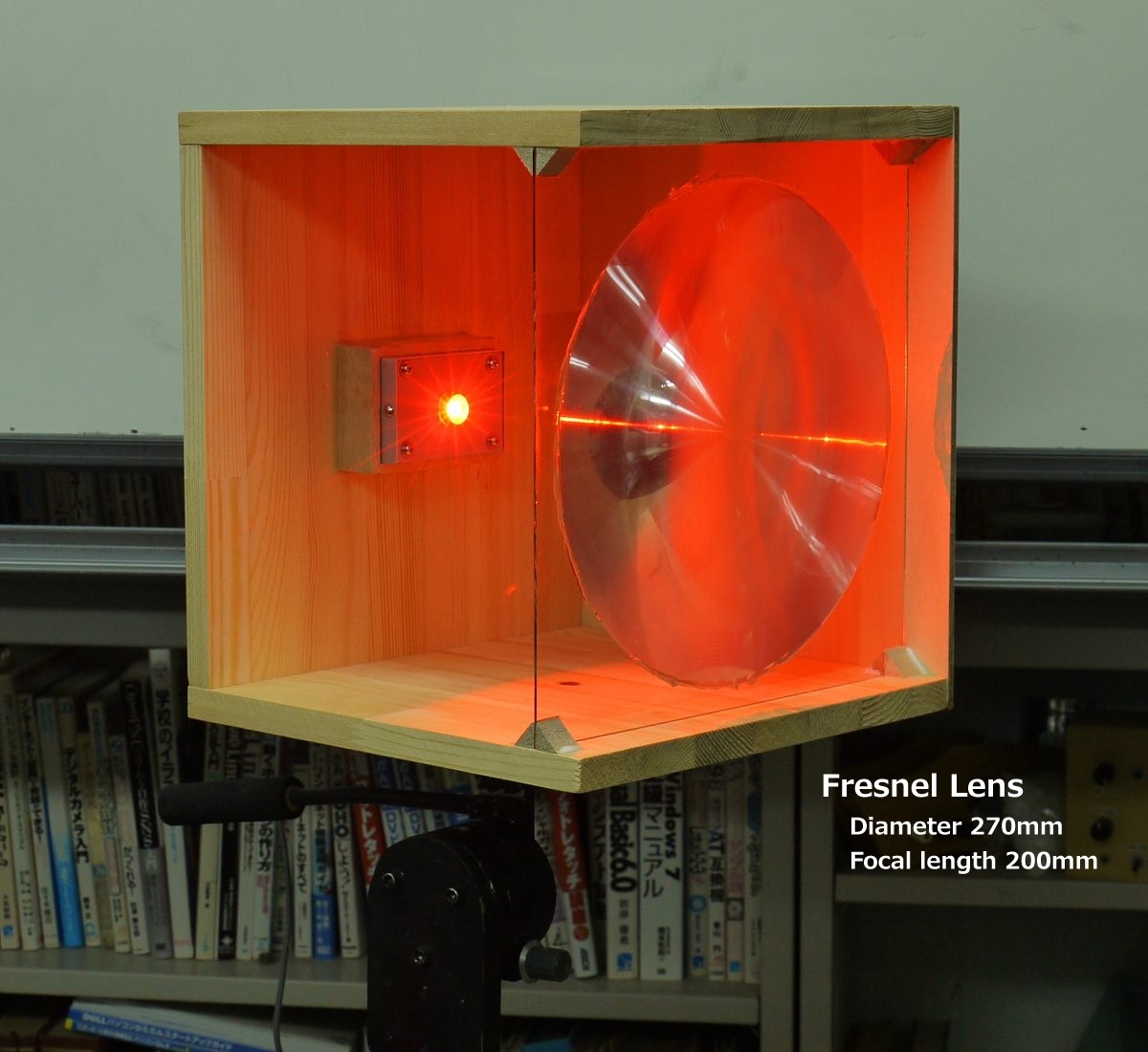

Wooden lens box

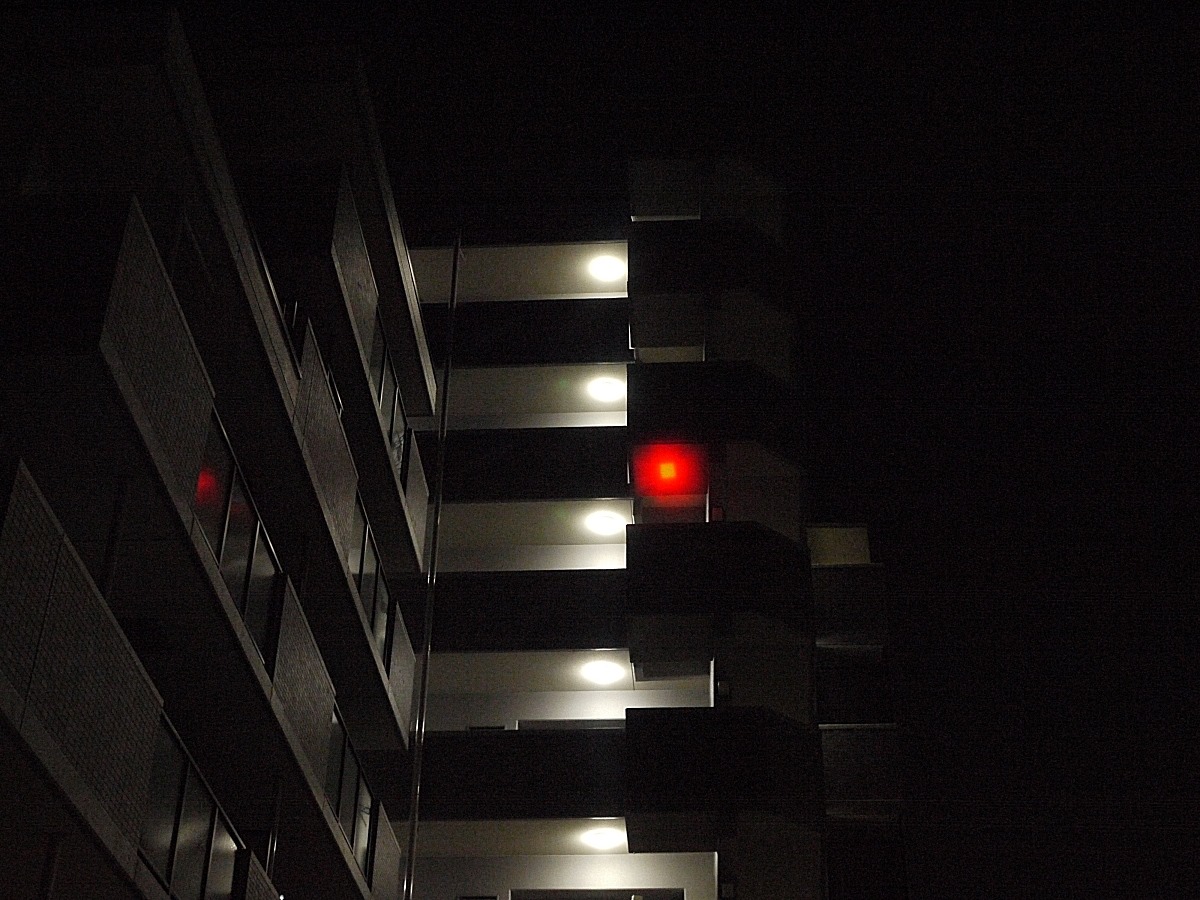

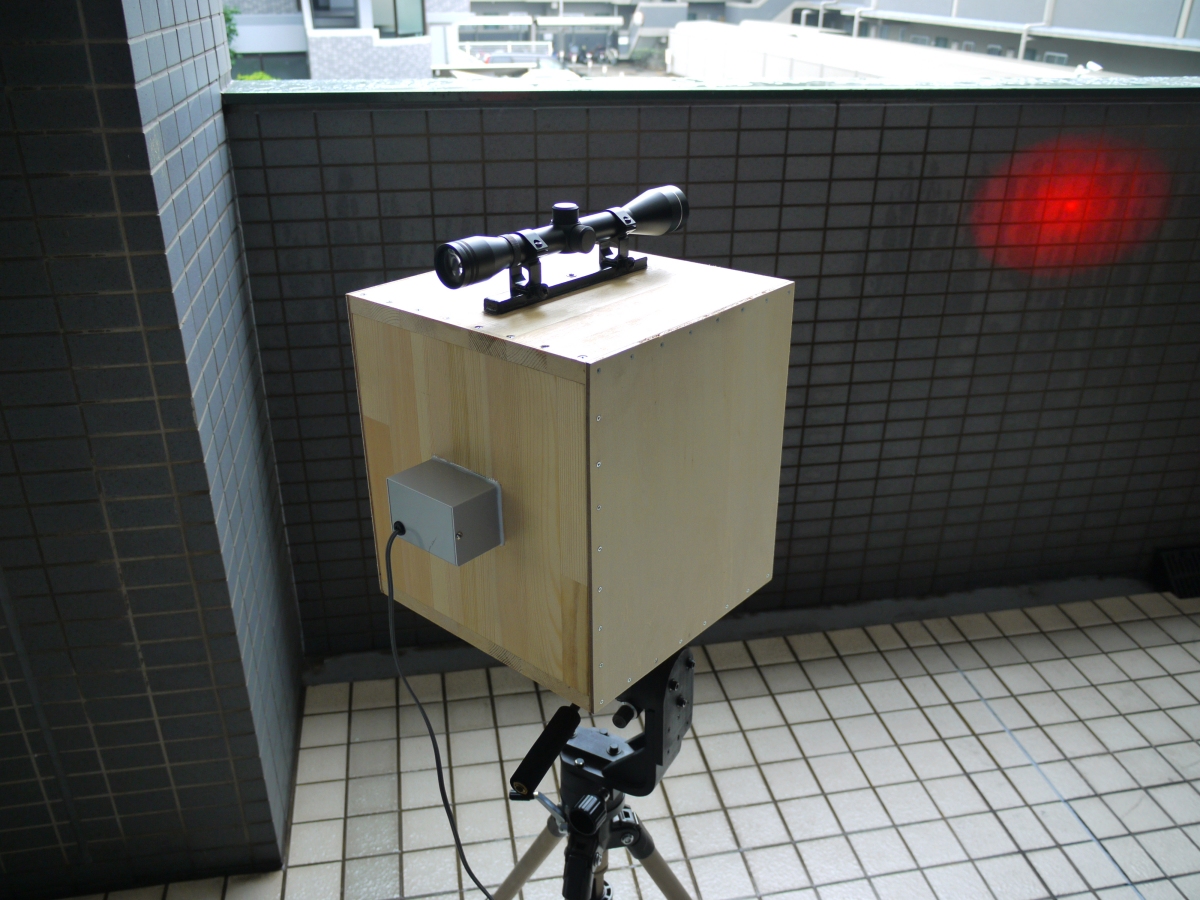

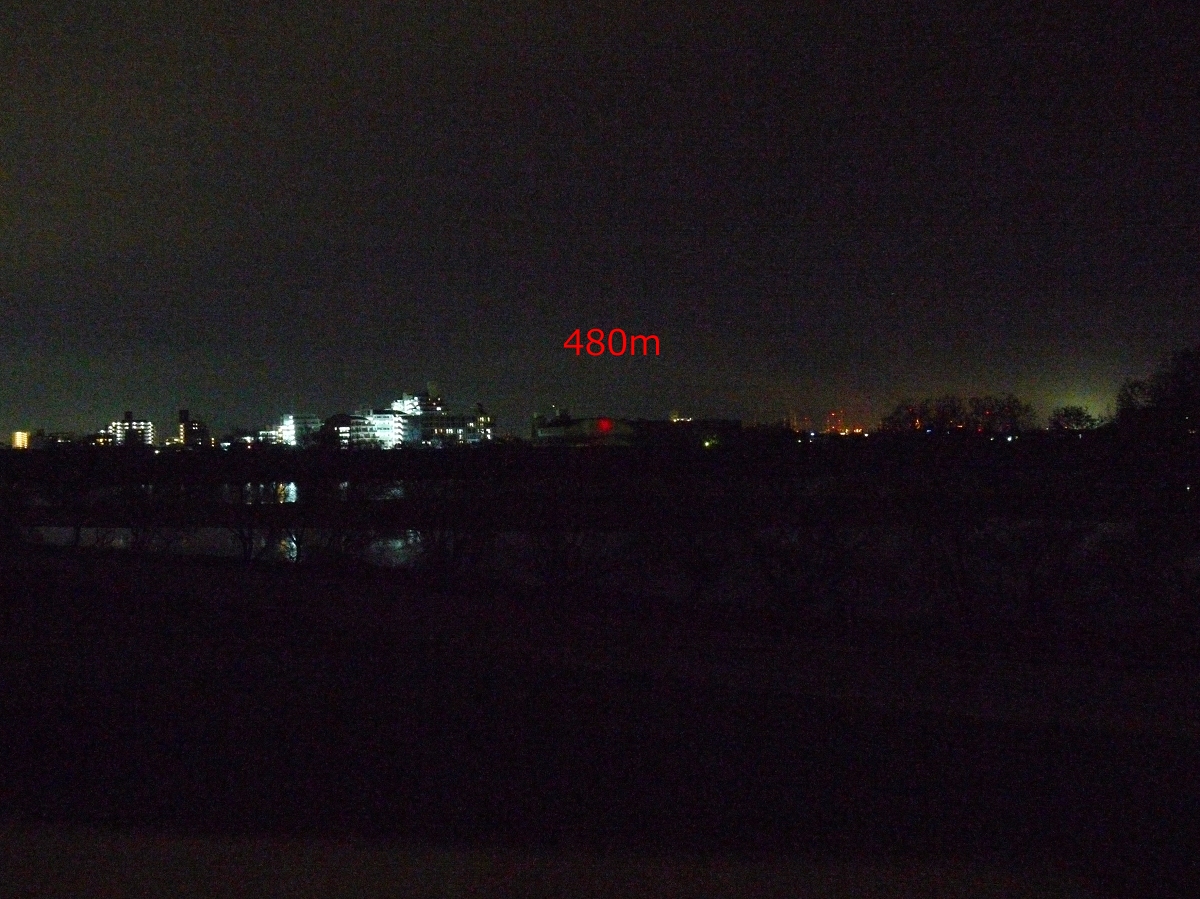

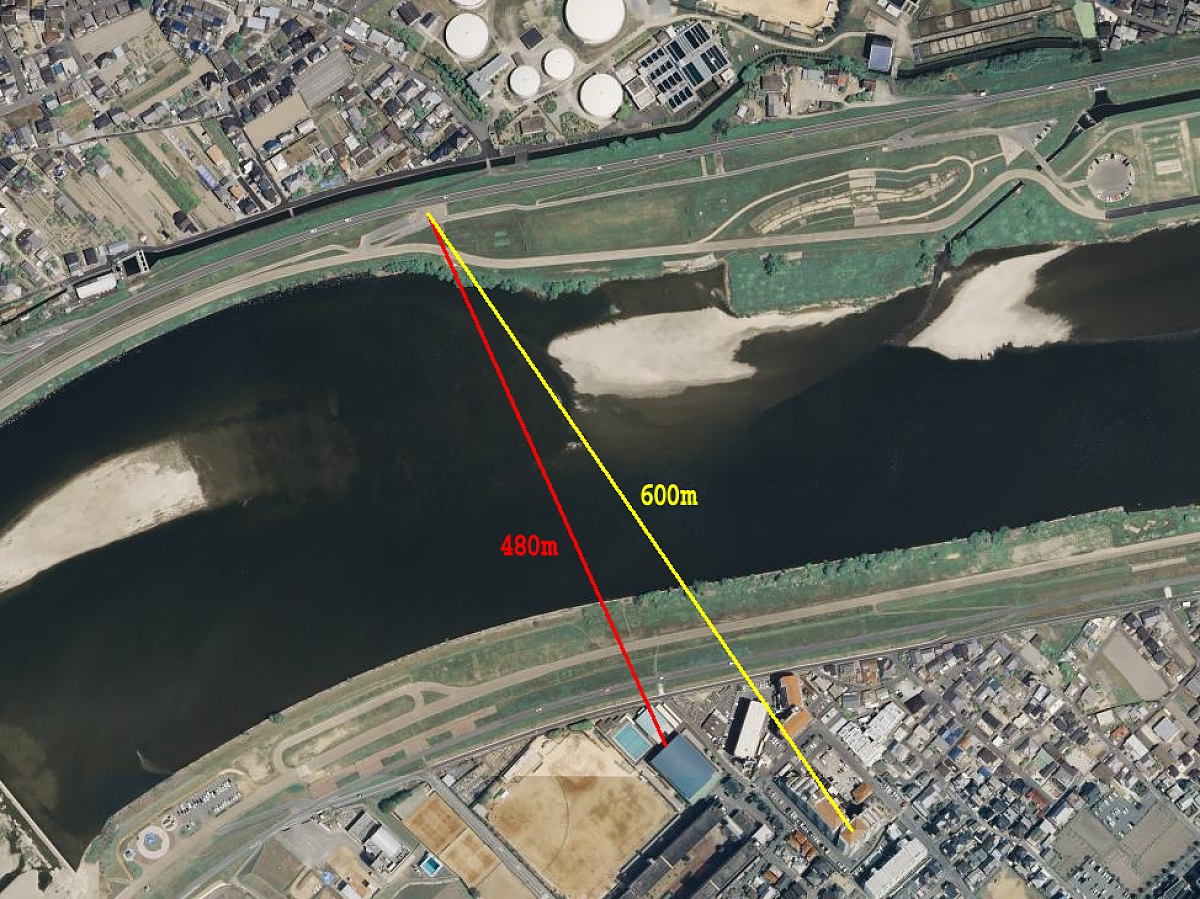

Lightbeam projected on the wall of apartment house about 40m from my office

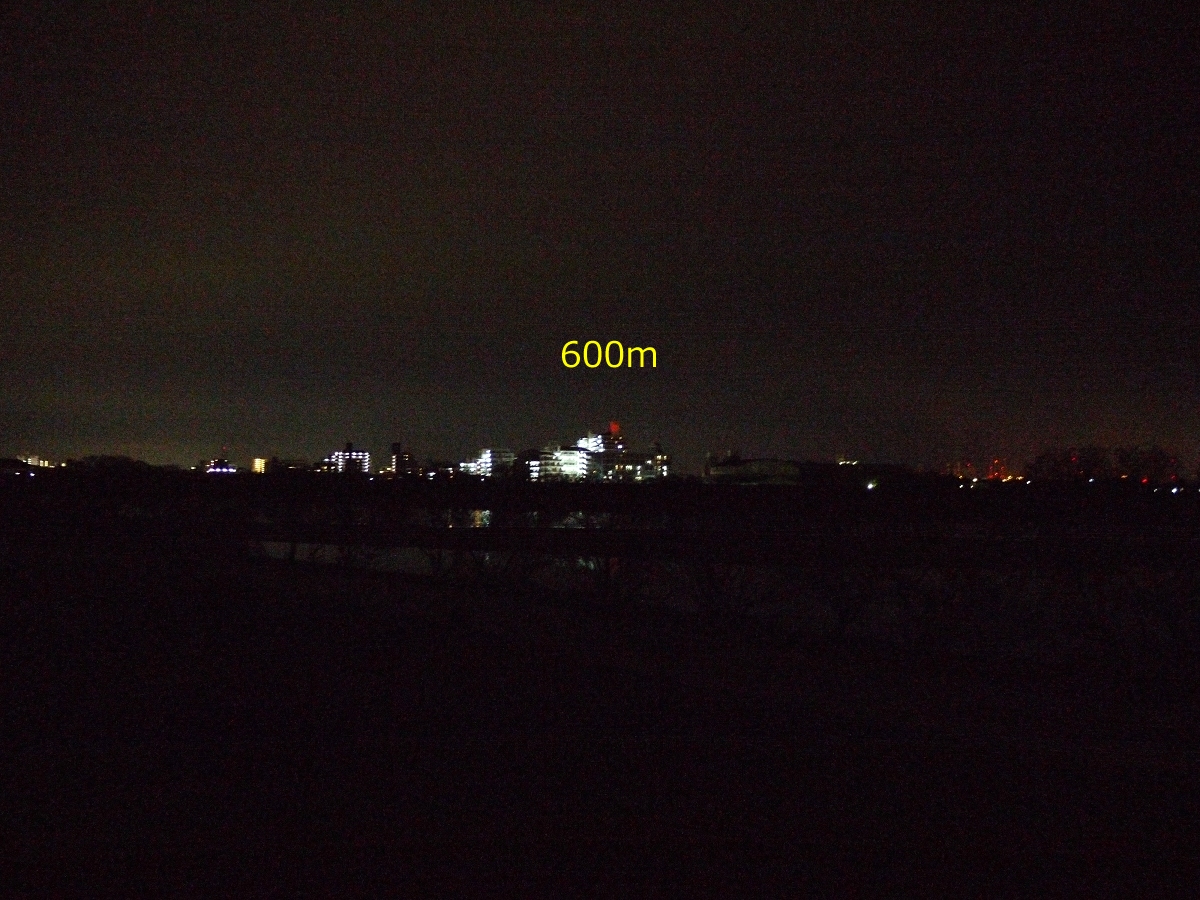

Lightbeam projected on the water tank of apartment house about 100m from my office

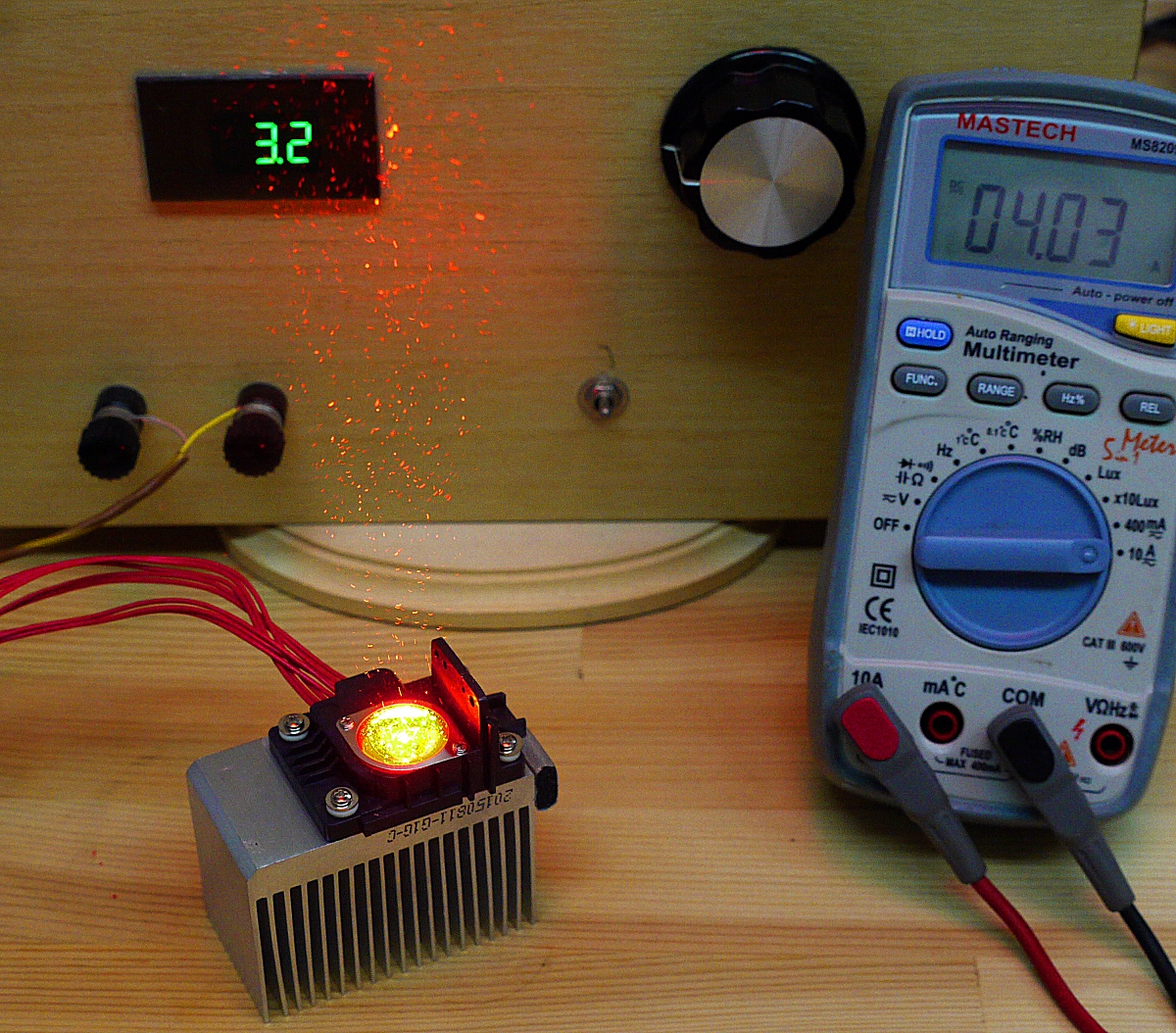

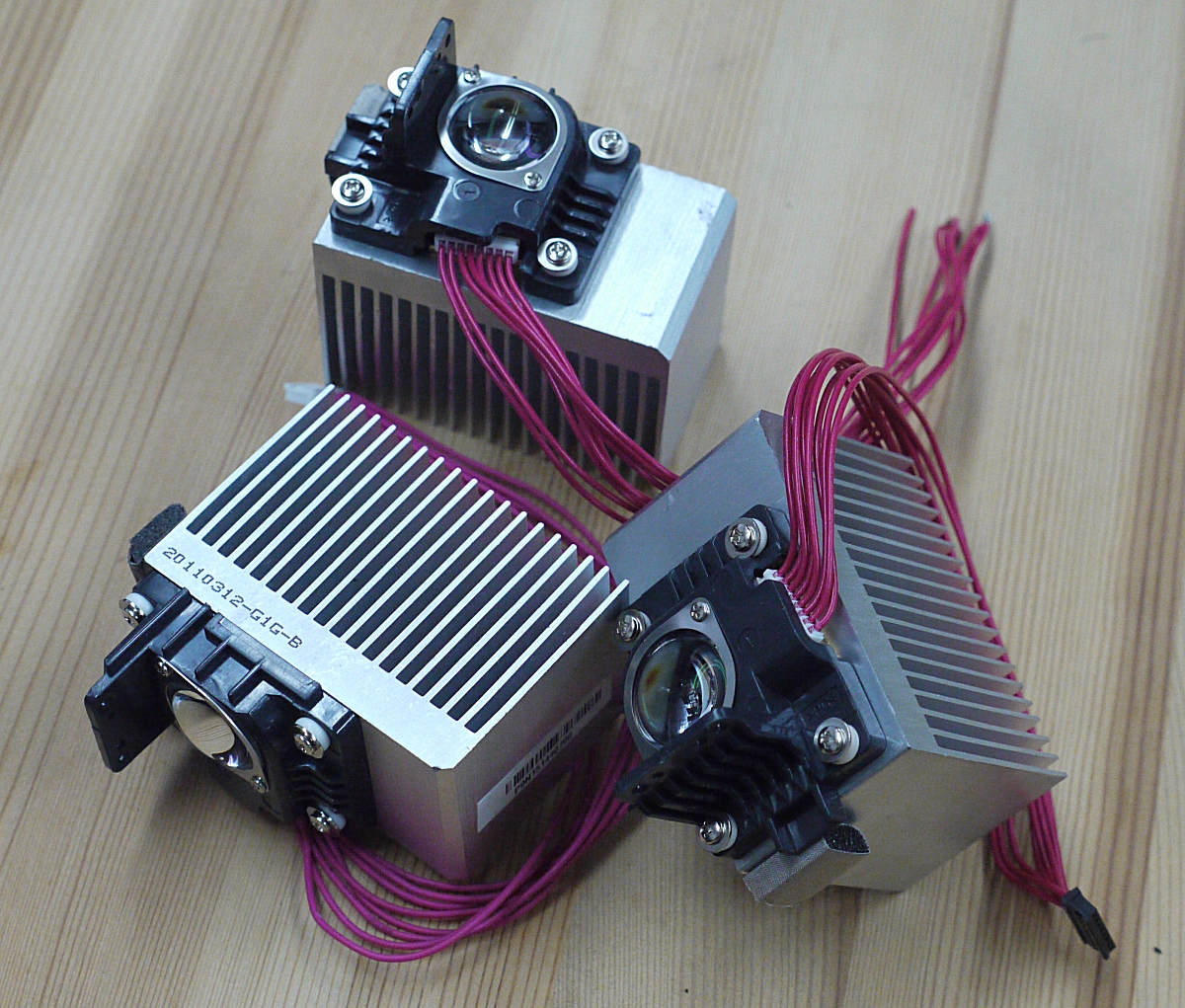

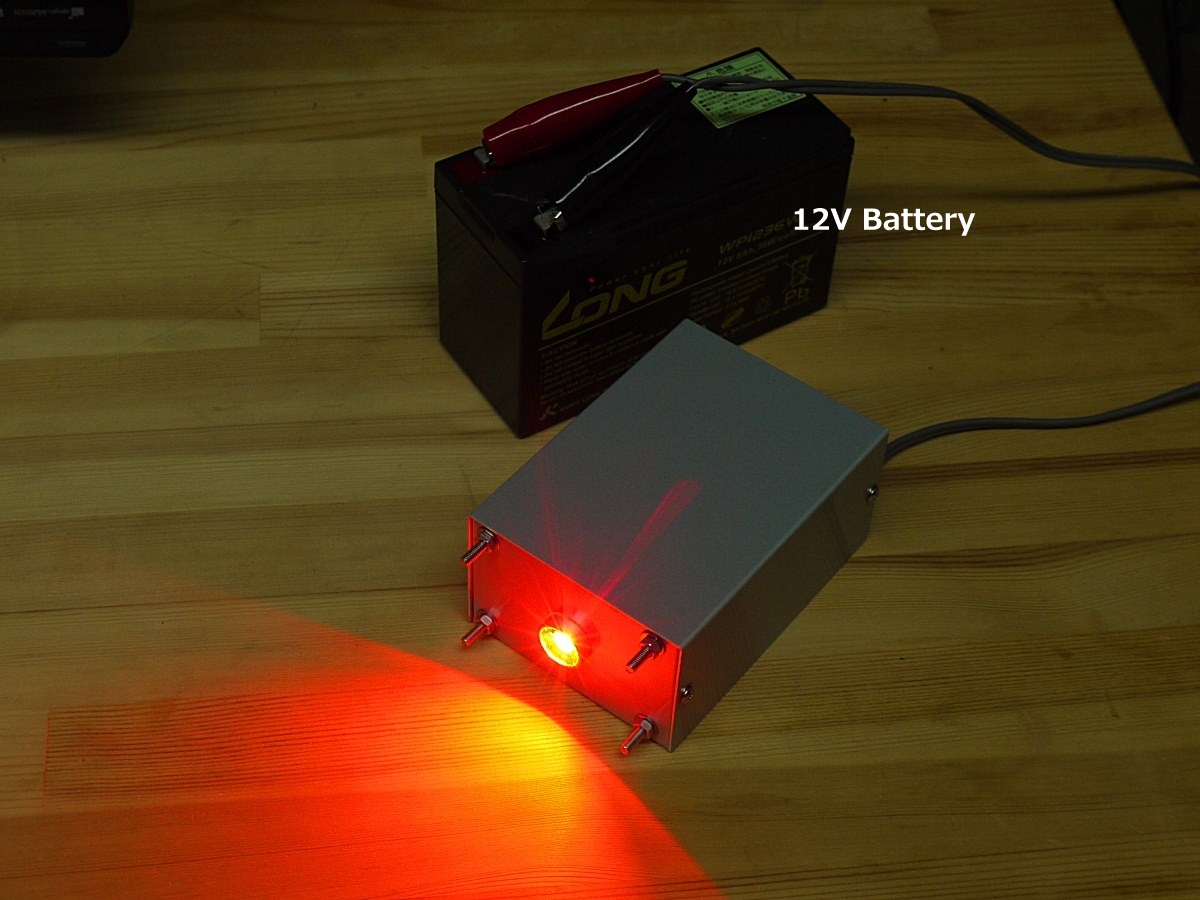

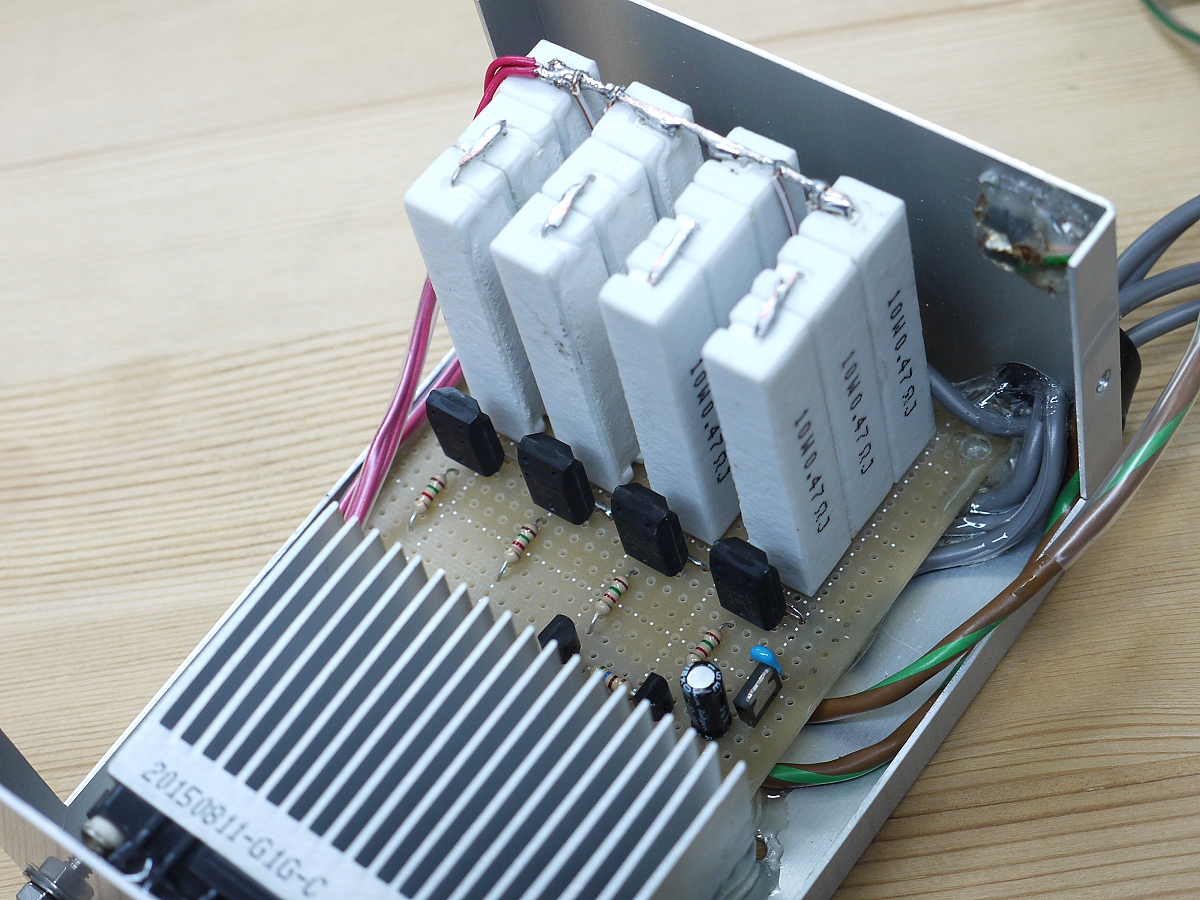

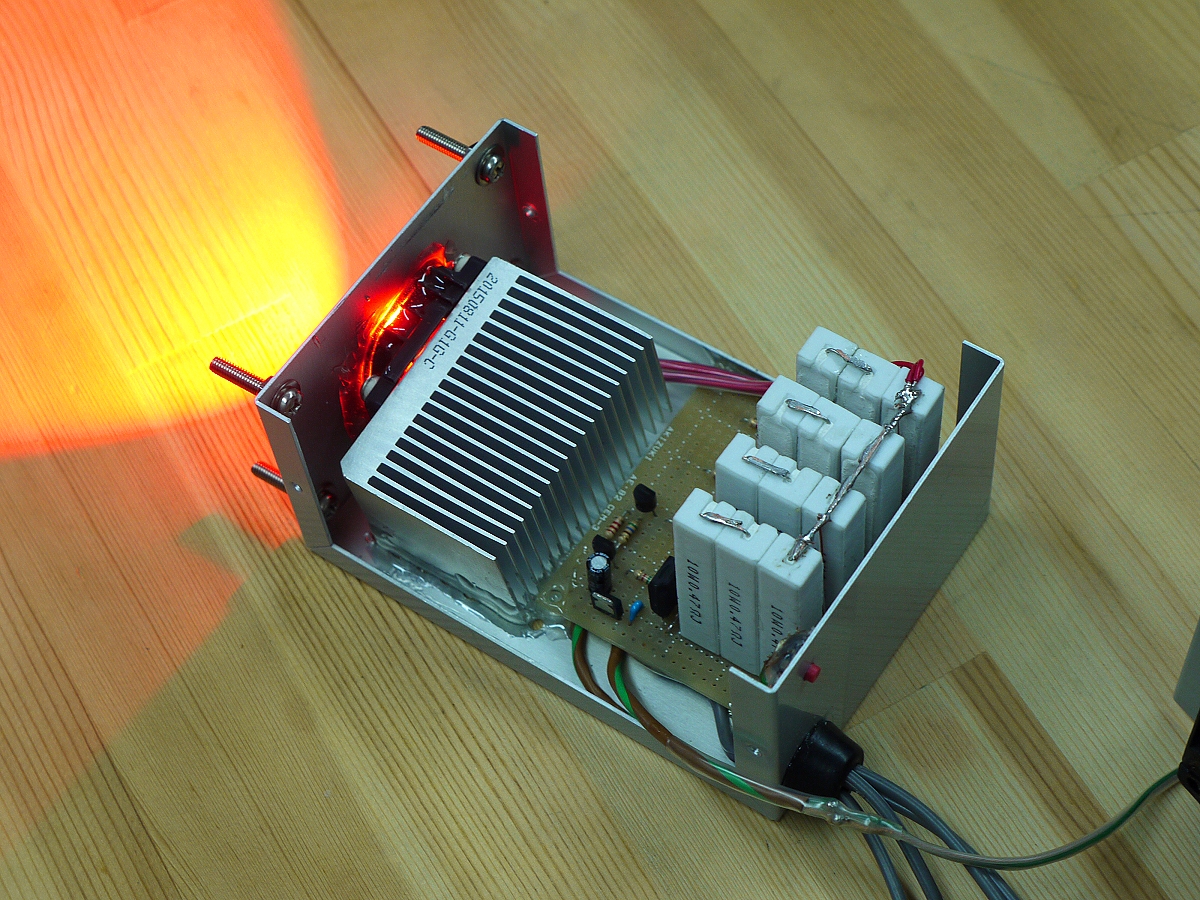

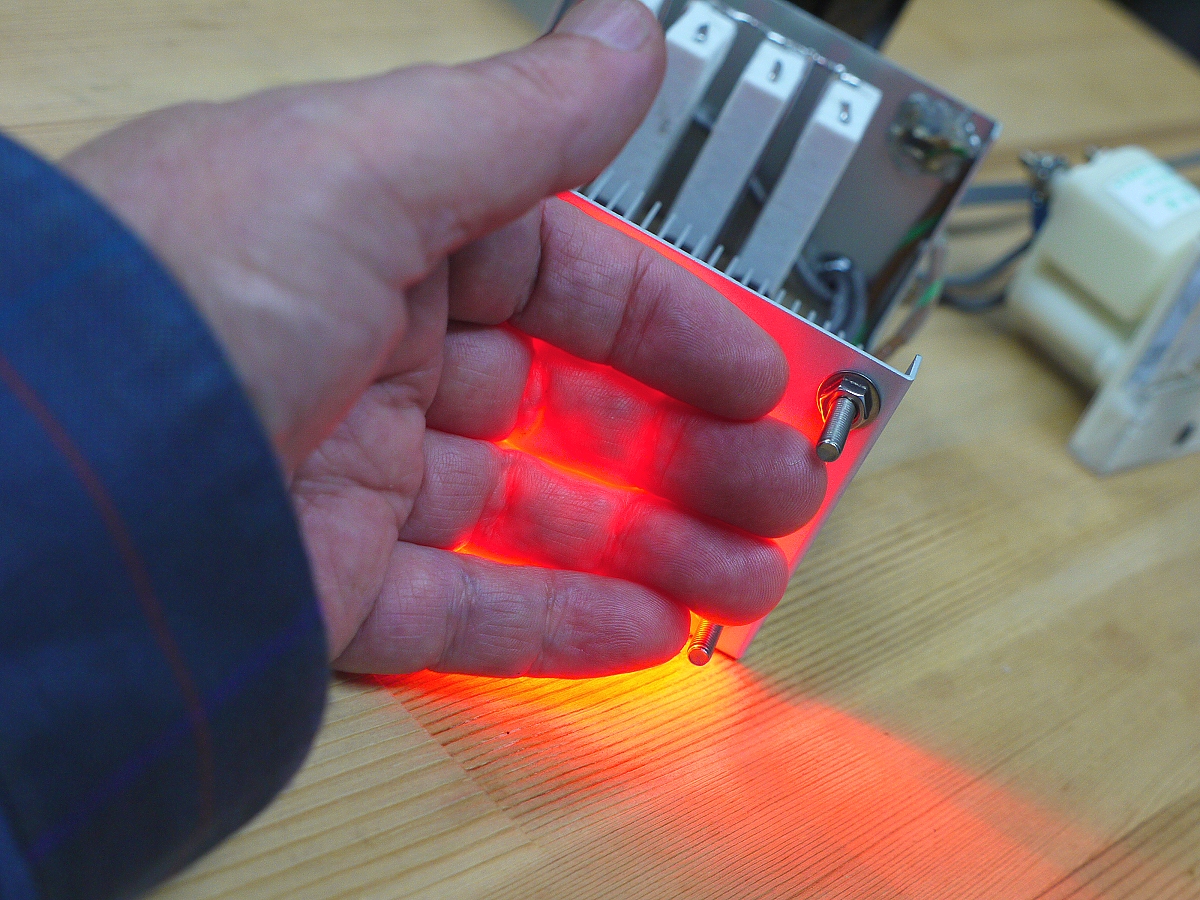

Ultra-high-power LED Luminus Devices PT-54 unit
